Tenda O1 Outdoor Access Point 300Mbps Long Range Smart Manage Router CPE 2.4GHz PoE Wireless Bridge 8dBi Transmission
About this item
- 2.4GHz 11n 300Mbps: The maximum wireless speed of O1 can reach 300Mbps, conforms to the frequency range of 2.4GHz
- 500m Transmission: O1 integrates with an 8dBi directional antenna to provide optimized transmission quality. Collects and maintains a stable signal for a wireless network connection of up to 500 meters

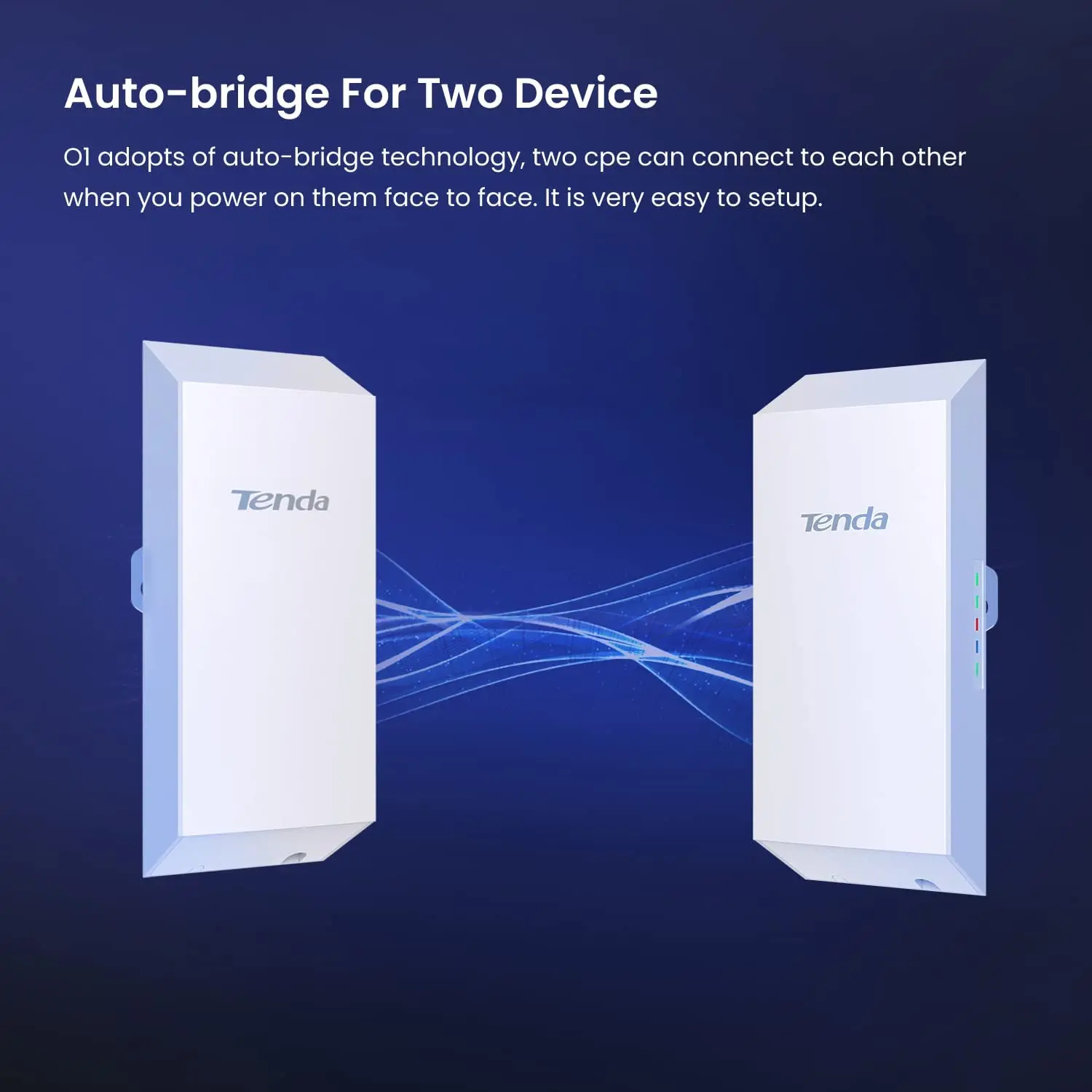

- Auto-bridge for two devices: O1 adopts auto-bridge technology, two cpe can connect with each other when you turn them on face to face. It is very easy to set up
- Long distance wireless connection: One works as AP mode and another works as Station mode to create a long distance PtP wireless connection for private ISP wireless connectivity, CCTV surveillance and data transmission

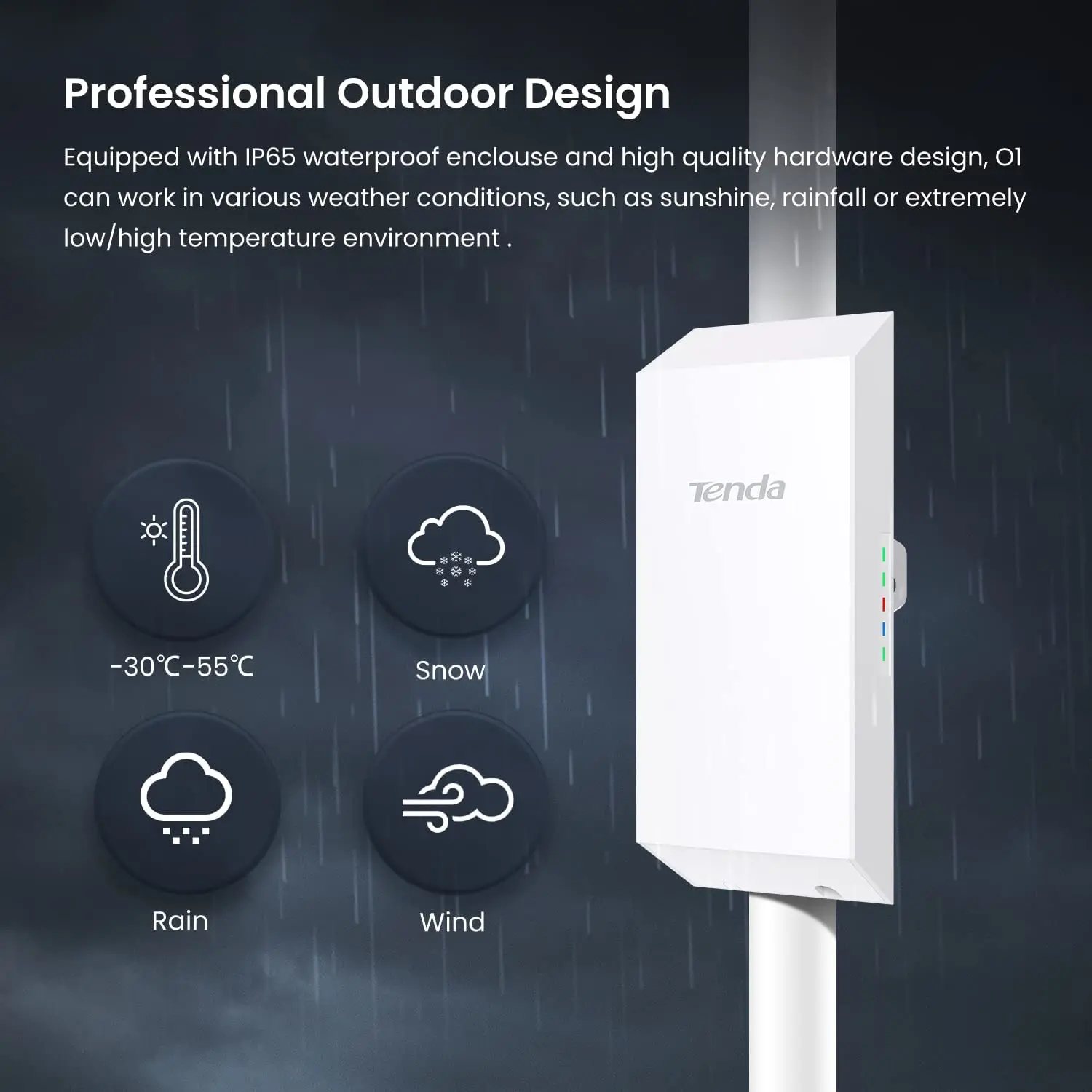

- Professional Outdoor Design: Equipped with IP65 waterproof case and high quality hardware design, O1 can work in various weather conditions, such as sunshine, rain or extremely low / high temperature environment
Tenda O1 2.4Ghz
- 500m Outdoor Point To Point CPE
- Extend the network to another building & extend your monitoring range.
Package including:
- 2x O1-2.4G,
- 2x power adapter,
- 2x PoE adapter.
Point to Multipoint Connection
Point to Point connection(AP+Client Mode
Long-Distance Wireless Connection (AP Mode)
Extend the network to another building
You can share the network with others
Easy Management with CPE Assistant
O1 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer–CPE Assistant.

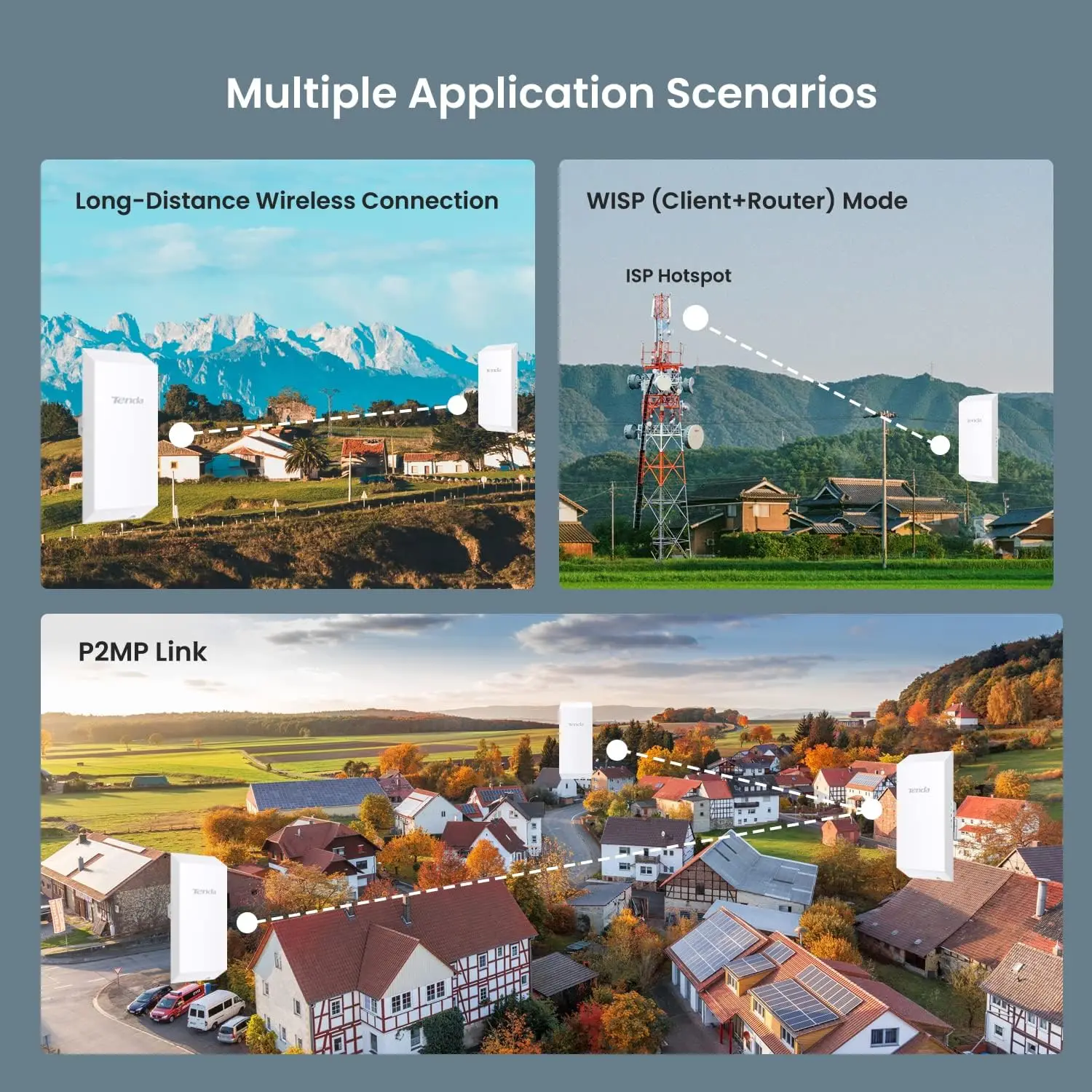

Wide Range Of Application Scenarios
Feature:
1. For video surveillance application scenarios, transparent bridge technology is adopted to allow the wireless bridge interface to forward all data packets, which mainly solves the problem that some NVRs cannot activate cameras and NVRs cannot manage IPC across network segments;
2. Built-in 8dbi high-gain directional antenna, the horizontal coverage angle is 60 degrees, the vertical angle is 30 degrees, the wireless transmission energy is more concentrated, and the transmission distance in the strong interference environment can reach 500 meters;

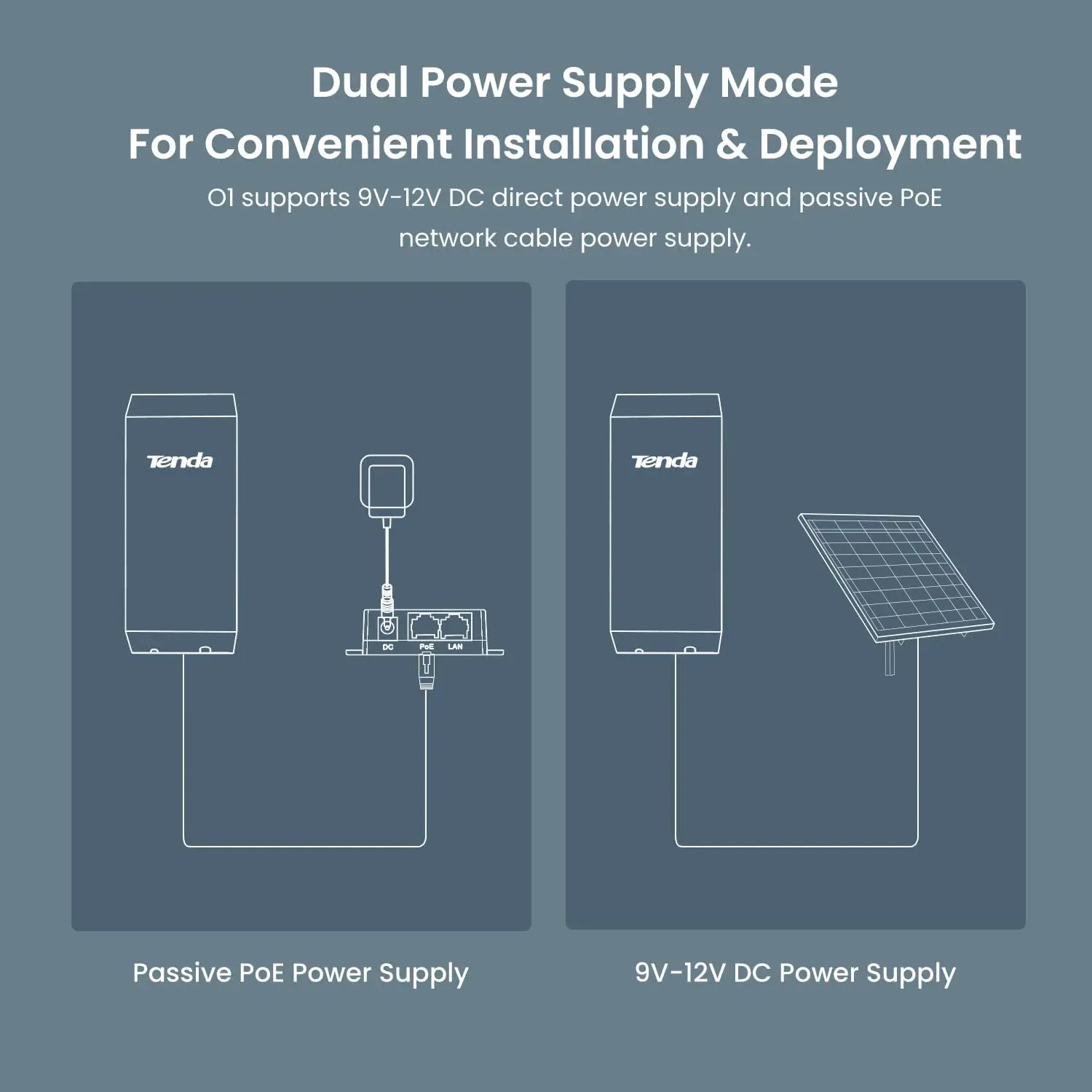

3. Support 9V-12V DC direct power supply and passive PoE network cable power supply. When the bridge is installed far away from the power socket, passive PoE network cable can be used for power supply. When the bridge is installed away from the power socket or the camera power supply line When the device is near, use DC direct power supply;

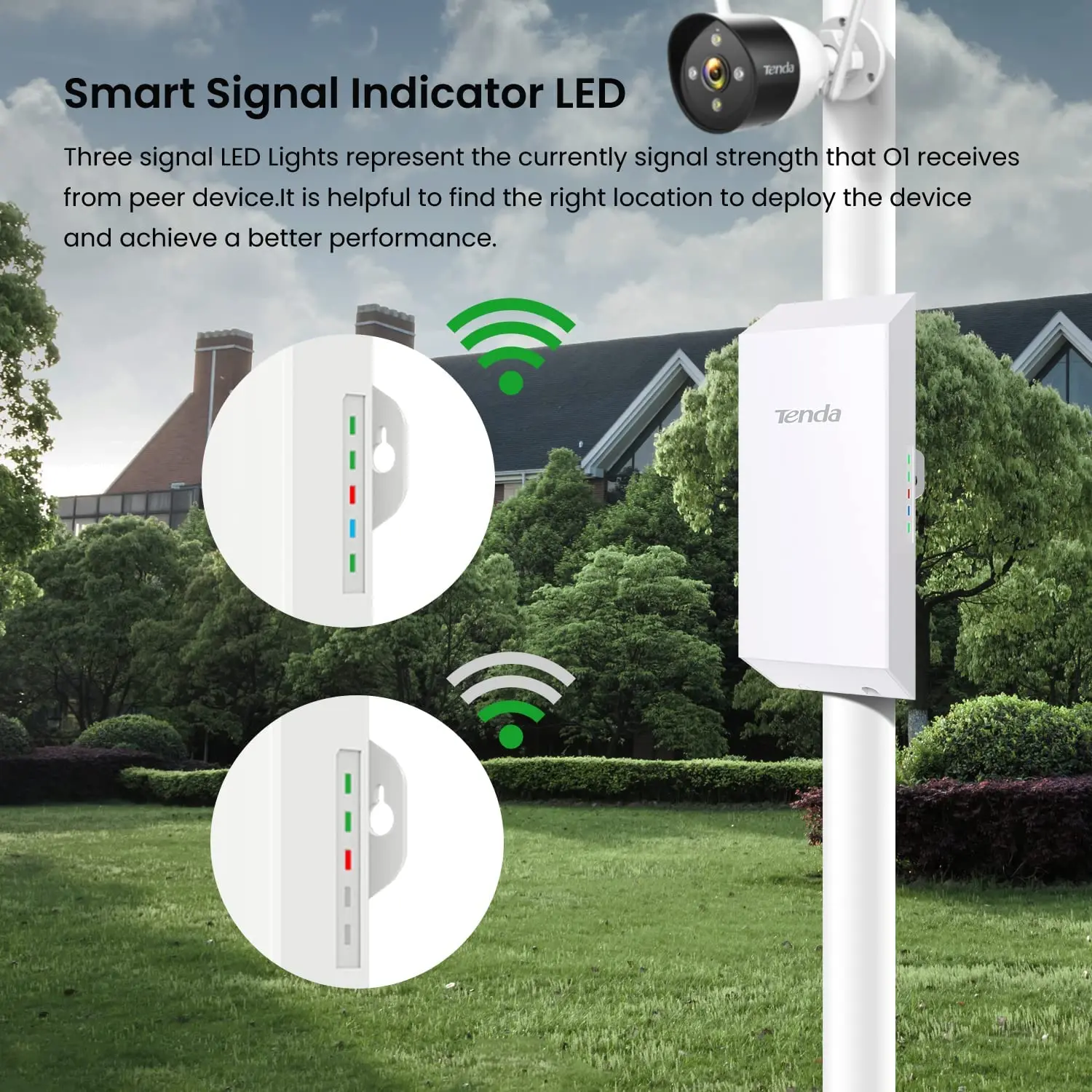

4. Multi-level signal strength indicator design is adopted, and different colors are used to display the signal strength of the current bridging peer device. When installing the equipment, you can find the best installation position and direction according to the on and off status of the signal indicator;
5. Adopting high protection grade shell design, dustproof and waterproof grade up to IP65; high specification electronic materials, outdoor working temperature range -30℃ to 55℃, suitable for various severe outdoor environments such as wind, rain and snow;
6. Support AP, client, wireless WAN working mode, can be used for long-distance point-to-point data transmission, video monitoring, wireless connection to ISP signal tower.
Everything OK
I don’t know the device.
Shipping is fast and good for IP 192.168.2.1 no access to computer.
One-on-one transmission and reception are well done, but not one-on-two or three.
Do not do it according to the manual?
Good material quality and fast delivery, I will test them to see if they work and if installation is easy, thank you.
Poor quality garbage does not even reach 50 metersSave your money this is useless
Arrived fast to Mexico, a little bit hit the box but did not affect the product, connecting the two automatically sync is super easy, install them 250 meters away from each other and work very well, I use them to pass the internet to another house, Slow down a bit but nothing that affects how it works, I really recommend them, reliable seller.
Unfortunately, our government only wants money from them! I couldn’t homologate as the love government requests.
Good product for me. I set it as AP in my house and client device is in my metal man cave. The distance is 10m but basic WiFi extender cannot catch enough signal.
This item signal is better than normal AP. I can watch Amazon Prime, Youtube and netflix in my man cave.
However WISP mode is not supported. If you need this function, need to confirm seller.
Have just managed to test this today and the Darn thing is not working. Not powering up. Useless.
Product meets expectations. Delivery until it was fast!
I did a quick test here at short distance and it worked well, I bought to take to the place, I hope it works there TBM.
It is not so difficult to configure for those who already have a notion.
